Citymaster Water Softener

Description

The Citymaster is Aquatell's perfect softener for homes and cottages on municipally supplied water that's moderately hard. Compact yet powerful, our purpose-selected components produce a high-performing machine that will deliver years of luxurious soft water and save you tons of water and salt in the process.

The Citymaster is built with a genuine USA-Made Clack™ upflow-regenerating control valve and Canadian-made 10% cross-linked resin. The Citymaster softener is designed with the do-it-yourselfer in mind:

• your choice of plumbing connectors
• push-to-connect brine line connections
• pre-loaded softening tank
• valve is pre-programmed
• bypass valve, plumbing connectors, and drain line connectors are all hand-tightened - no tools required

Resources

• Softener Selector online configurator
• Ultimate Guide to Choosing a Water Softener
• Unpacking, Installation, and Startup Instructions

Tech Specs

• Designed & Built in London, Ontario, Canada
• Factory Programmed
• Demand Regenerated
• True 1" Throughput for Max Flow
• Max Softener Efficiency Rating (SER): 4,000 Grains / Pound
• 16,000 Grains Capacity @ 4 Pounds of Salt
• 24,000 Grains Capacity @ 9 Pounds of Salt
• As little as 35 Gallons of Water Used Per Regeneration
• Soft Water Brine Tank Refill
• Treatment Flow Rate of 7.5 gpm for hardness less than 15 gpg
• Treatment Flow Rate of 5.0 gpm for hardness less than 35 gpg
• Max System Flow Rate of 21 gpm
• Maximum Iron + Manganese Concentration of 0.3 mg/L (PPM)
• Brine Tank Dimensions: 14" x 14" x 35"
• 200 Pound Salt Capacity (about 3 standard bags of salt)
• 12-hour clock battery backup for power outages
• Softener retains settings even if unpowered for months
• 110V Standard Outlet
• All Components are NSF Standard 61 Certified
• Shipping Box 1: 9.25" x 9.25" x 35.5" - 61 lbs
• Shipping Box 2: 11.5" x 11.5" x 35.5" - 21 lbs
•


In the Build

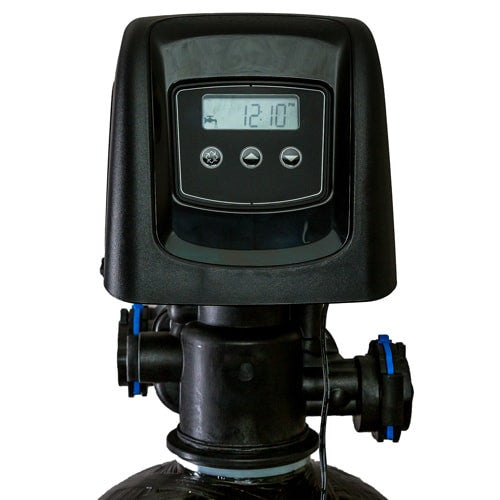

• Clack™ WS1 Upflow Control Valve
• Bypass Valve + Choice of Plumbing Connectors
• High-Durability Turbine Meter
• 1.0 Cubic Foot of 10% Cross Linked Canadian-Made Resin
• Top Basket (Prevents Accidental Resin Loss)
• 9" x 48" Media Tank
• 1.05" High Flow Riser Tube
• 14" x 14" x 35" Brine Tank
• Brine Well  with Safety Float
• Brine Tank Floor Drain Fitting
• 5' Brine Line
• 2 x 1g Silicone Lubricant

Warranty

• 5 years on the control valve, tanks, hardware
• 10 years on softener resin

This warranty is for manufacturer's defects only. Certain water softener components, such as the main piston, seal & spacers, and the brine valve will experience wear and tear during normal softener usage and may not be covered. Resin that has experienced unusual application conditions may not be covered. See water softener warranty details here.
