Citymaster PRO Water Softener

Description

The Citymaster PRO is Aquatell's perfect water softener for homes and cottages with very hard water and/or water that contains high iron + manganese. High-Velocity (HV) resin and the rugged and long-lived Clack™ upflow-regenerating control valve combine to produce outstanding softening results even in very challenging environments.

The combination of up-flow regeneration and HV resin also means that incredible efficiencies can be obtained. The Citymaster PRO can regenerate using as little as 21 gallons of water and 3 pounds of salt achieving a Softener Efficiency Rating (SER) of 5,000 grains per pound of salt used.

The Citymaster Pro softener is designed with the do-it-yourselfer in mind:

• your choice of plumbing connectors
• push-to-connect brine line connections
• pre-loaded softening tank
• valve is pre-programmed
• bypass valve, plumbing connectors, and drain line connectors are all hand-tightened - no tools required

Resources

• Softener Selector online configurator
• Ultimate Guide to Choosing a Water Softener
• Unpacking, Installation, and Startup Instructions

Tech Specs

• Designed & Built in London, Ontario, Canada
• Factory Programmed Control Valve
• Demand Regenerated
• True 1" Throughput for Max Flow
• Max Softener Efficiency Rating (SER): 5,000 Grains / Pound
• 15,000 Grains Capacity @ 3 Pounds of Salt
• 24,000 Grains Capacity @ 9 Pounds of Salt
• As Little As 21 Gallons of Water Used Per Regeneration
• Soft Water Brine Tank Refill
• Treatment Flow Rate of 10 gpm for hardness less than 35 gpg
• Treatment Flow Rate of 7.5 gpm for hardness less than 65 gpg
• Max System Flow Rate of 21 gpm
• 5 mg/L (PPM) of Iron + Manganese*
• Brine Tank Dimensions: 14" x 14" x 35"
• 200 Pound Salt Capacity (about 4.5 standard bags of salt)
• 12-hour Clock Battery Backup
• Softener Retains Settings Even If Unpowered For Months
• 110V A/C Adapter
• All Components are NSF Standard 61 Certified
• Shipping Box 1: 9.25" x 9.25" x 35.5" - 61 lbs
• Shipping Box 2: 11.5" x 11.5" x 35.5" - 21 lbs
•


In the Build

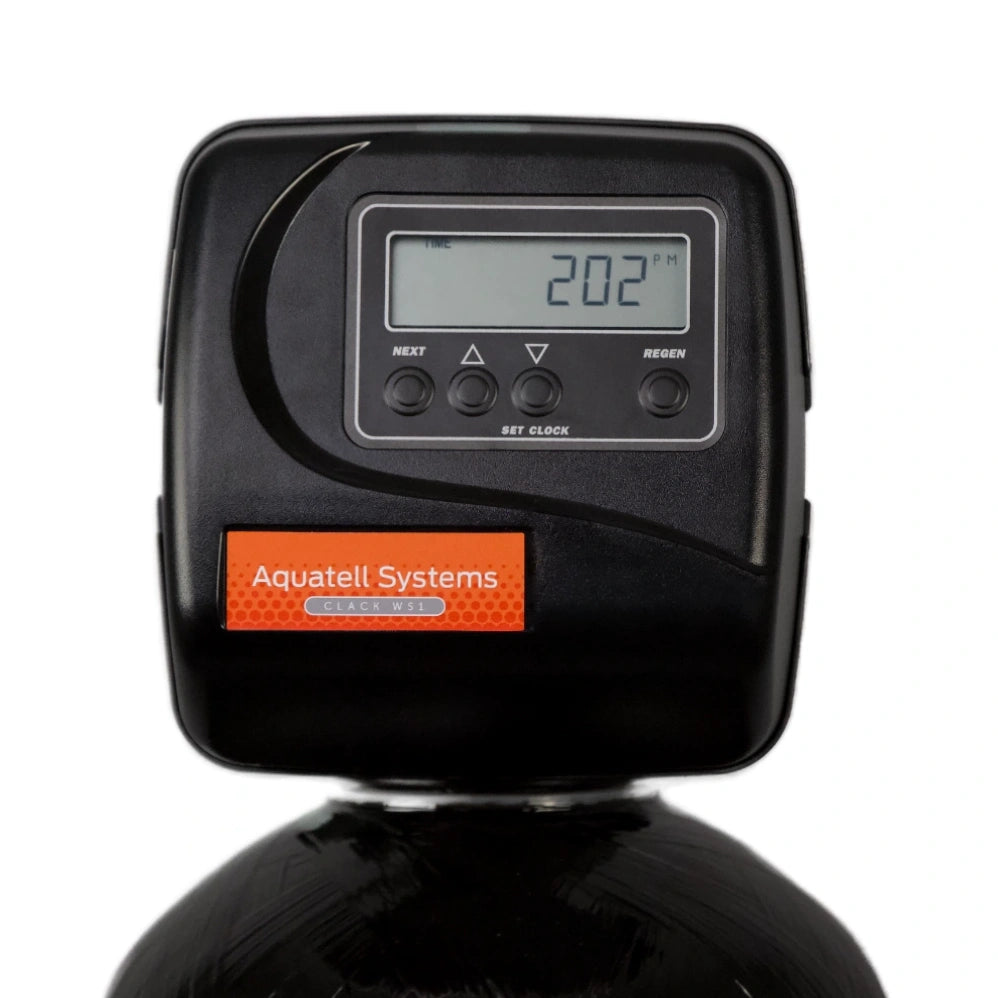

• Clack™ WS1 Upflow Control Valve
• Bypass Valve + Choice of Plumbing Connectors
• High-Durability Turbine Meter
• 1.0 Cubic Foot of 10% USA-Made High Velocity Resin
• Top Basket (Prevents Accidental Resin Loss)
• 9" x 48" Media Tank
• 1.05" High Flow Riser Tube
• 14" x 14" x 35" Brine Tank
• Brine Well  with Safety Float
• Brine Tank Floor Drain Fitting
• 5' Brine Line
• 2 x 1g Silicone Lubricant

Warranty

• 5 years on the control valve, tanks, hardware
• 10 years on softener resin

This warranty is for manufacturer's defects only. Certain water softener components, such as the main piston, seal & spacers, and the brine valve will experience wear and tear during normal softener usage and may not be covered. Resin that has experienced unusual application conditions may not be covered. See water softener warranty details here.
